Screen Size (Measured Diagonally)13.3 inch (33.8 cm)
TechnologyLED
Viewing Angle178° (89°/89°) H, (89°/89°) V
Aspect Ratio16:9
Contrast Ratio800:1
Brightness150cd/m2
Active Area294 x 165 mm (11.6 x 6.5 in)
Graphics InputUSB type C (for optimum performance) or Mini DisplayPort using optional Wacom Link
Color GamutAdobe RGB (CIE1931)
Coverage Ratio: 80%
Area Ratio: 81%
Adobe RGB (CIE1976)
Coverage Ratio: 70%
Area Ratio: 72%
Response Rate25 ms
Industry Standard Pre-setsAdobe RGB, 6500 deg. K white point default: DCI, REC 709, SRGB
Operating SystemWindows 10 Home or Pro
(depending on model)
Expresskeys™6 customizable, application‑specific
Touch RingYes on Rocker Ring
Touch StripsNo
On-Screen ControlsYes
Rocker Ring And Home Button4 position customizable with default TouchRing function and home button
Radial MenuYes
Precision ModeYes
Display ToggleYes when attached to Mac or PC using optional Wacom Link
Dedicated Pan, Scroll, Zoom, Brush SizeYes
Stand AdjustabilityOptional detachable Wacom stand with 3 angles
OrientationRight or left-handed use
Cables IncludedAC adaptor and power cable
DisplayN/A
PC And MacOptional Wacom Link with USB type C, Mini DisplayPort and USB type A cables. Optimum performance using certified USB type C cable to USB type C port.
Video OutUSB type C
Peripherals3 USB type C
Other Connections1 Headset (Audio/combo)
NetworkBluetooth® 4.1 technology
Wireless802.11 ac
CamerasFront: 5 MP HD
Back: 8 MP HD
Back: Intel RealSense™ R200 (3D scanning camera) on select models
Speakers2 x 1.5W
Power Supply Input100 to 240 VAC, 50/60 Hz
Power Supply Output5V/3A (15W), 20V/5A (100W)
Battery11.4 V, Li-polymer, 52 Wh
Power ConsumptionMax: 96W, TBD W when asleep, TBD W or less when off
0.28 W or less when off
Battery LifeBattery Life Will Vary. It Depends On How The Products Are Used And Which Device Settings Are Selected.
Battery Charging TimeUp to 2 hours
System RequirementsWith optional Wacom Link:
Windows® 7 or later
Mac OS X 10.8 and later
Limited Warranty1 year in USA, Canada, and Latin America

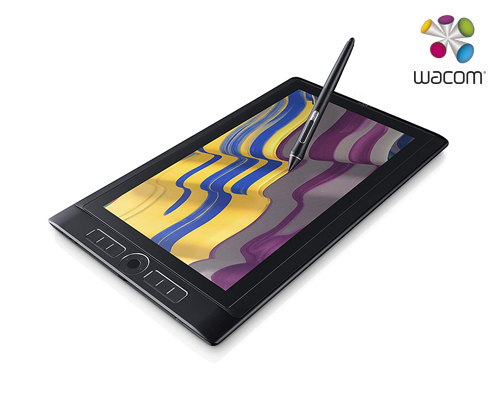

What's IncludedWacom MobileStudio Pro 13
Wacom Pro Pen 2
pen case with 3 replacement nibs, color rings and nib removal tool
pen holder
AC Power Adapter + power cable
Quick Start Guide
Cleaning cloth
CertificationsVCCI Class B, FCC Part 15, Subpart B (class B) and C, CE, KC, BSMI, C‑tick, CB, CCC, EAC, China RoHS, Korean RoHS, EU RoHS, SII, NOM, CEL, IC, Energy Star, CEC‑BCS, Energy Label Law
Additional AccessoriesWacom Link
Wireless Bluetooth® Keyboard
Wacom Color Manager
Wacom Stand
Wacom Soft Case
Nibs
Wacom Pro Pen 2 + Pen case
Previous generation pens: Airbrush, Art Pen, Classic Pen, Grip Pen
Cintiq Adjustable Stand
Cintiq Soft Case
